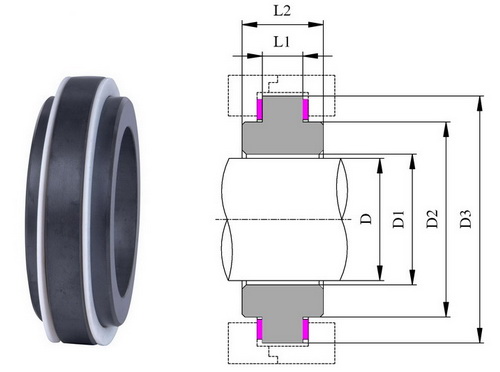

Equivalent to John Crane V stationary
Metric Shaft Size D | D1 | D2 | D3 | L1 | L2 | Gasket Thick |
10 | 11.00 | 26.90 | 37.00 | 17.40 | 7.9 | 0.8 |
15 | 16.00 | 31.90 | 41.00 | 17.40 | 7.9 | 0.8 |
19 | 20.00 | 36.21 | 46.50 | 17.40 | 7.9 | 0.8 |
20 | 21.00 | 36.90 | 47.00 | 17.40 | 7.9 | 0.8 |
22 | 23.20 | 39.39 | 49.50 | 17.40 | 7.9 | 0.8 |
25 | 26.00 | 41.90 | 52.00 | 17.40 | 7.9 | 0.8 |
30 | 31.00 | 48.69 | 58.75 | 26.10 | 11.1 | 1.6 |
35 | 36.00 | 53.68 | 65.50 | 26.90 | 11.1 | 1.6 |
40 | 41.00 | 61.90 | 75.00 | 26.10 | 11.1 | 1.6 |
45 | 46.00 | 66.90 | 80.00 | 26.10 | 11.1 | 1.6 |
48 | 49.00 | 69.55 | 82.50 | 26.90 | 11.1 | 1.6 |
50 | 51.00 | 71.90 | 85.00 | 26.10 | 11.1 | 1.6 |
55 | 56.00 | 79.90 | 96.00 | 34.00 | 14.0 | 1.6 |
60 | 61.00 | 84.90 | 101.00 | 34.00 | 14.0 | 1.6 |
65 | 66.00 | 89.90 | 106.00 | 34.00 | 14.0 | 1.6 |
70 | 71.00 | 94.90 | 111.00 | 33.30 | 14.3 | 1.6 |
73 | 74.00 | 98.13 | 114.50 | 33.30 | 14.3 | 1.6 |
75 | 76.00 | 99.90 | 116.00 | 34.00 | 14.0 | 1.6 |
80 | 81.00 | 104.90 | 121.00 | 34.00 | 14.0 | 1.6 |
85 | 86.00 | 109.90 | 126.00 | 34.00 | 14.0 | 1.6 |
90 | 91.00 | 114.50 | 130.50 | 34.00 | 14.0 | 1.6 |
95 | 96.00 | 119.90 | 136.00 | 34.00 | 14.0 | 1.6 |
100 | 101.00 | 124.90 | 141.00 | 34.00 | 14.0 | 1.6 |
105 | 106.00 | 139.90 | 162.00 | 36.00 | 16.0 | 1.6 |
110 | 111.00 | 144.90 | 167.00 | 36.00 | 16.0 | 1.6 |
115 | 116.00 | 149.90 | 172.00 | 36.00 | 16.0 | 1.6 |
120 | 121.00 | 153.90 | 176.00 | 36.00 | 16.0 | 1.6 |
125 | 126.00 | 159.90 | 181.00 | 36.00 | 16.0 | 1.6 |
Inch Shaft Size D | D1 | D2 | D3 | L1 | L2 | Gasket Thick |
0.500' | 13.70 | 29.05 | 39.7 | 17.40 | 7.9 | 0.8 |
0.625' | 16.80 | 33.04 | 43.69 | 17.40 | 7.9 | 0.8 |
0.875' | 23.20 | 39.39 | 49.50 | 17.40 | 7.9 | 0.8 |
1.000' | 26.40 | 42.56 | 52.50 | 17.40 | 7.9 | 0.8 |
1.125' | 29.60 | 45.74 | 58.5 | 26.90 | 11.1 | 1.6 |
1.250' | 32.70 | 50.50 | 63.50 | 26.90 | 11.1 | 1.6 |
1.375' | 36.00 | 53.68 | 65.50 | 26.90 | 11.1 | 1.6 |
1.500' | 39.10 | 56.85 | 69.50 | 26.90 | 11.1 | 1.6 |
1.625' | 42.20 | 63.20 | 76.50 | 26.90 | 11.1 | 1.6 |
1.750' | 45.40 | 66.38 | 79.50 | 26.90 | 11.1 | 1.6 |
1.875' | 49.00 | 69.55 | 82.50 | 26.90 | 11.1 | 1.6 |
2.000' | 51.80 | 72.73 | 85.50 | 26.90 | 11.1 | 1.6 |
2.125' | 54.90 | 79.08 | 95.50 | 33.30 | 14.3 | 1.6 |
2.250' | 58.10 | 82.25 | 98.50 | 33.30 | 14.3 | 1.6 |
2.375' | 61.30 | 85.43 | 101.50 | 33.30 | 14.3 | 1.6 |
2.500' | 64.50 | 88.60 | 104.50 | 33.30 | 14.3 | 1.6 |
2.625' | 67.60 | 91.78 | 108.50 | 33.30 | 14.3 | 1.6 |
2.750' | 71.00 | 94.90 | 111.00 | 33.30 | 14.3 | 1.6 |
3.000' | 77.20 | 99.71 | 115.50 | 33.30 | 14.3 | 1.6 |
3.125' | 80.40 | 102.89 | 119.50 | 33.30 | 14.3 | 1.6 |
3.500' | 89.90 | 114.00 | 130.50 | 34.30 | 14.3 | 1.6 |
3.750' | 96.30 | 120.35 | 136.50 | 34.30 | 14.3 | 1.6 |
4.000' | 102.60 | 126.70 | 142.50 | 34.30 | 14.3 | 1.6 |
4.25' | 109.00 | 133.05 | 149.50 | 34.30 | 14.3 | 1.6 |
4.500' | 115.30 | 139.40 | 155.50 | 34.30 | 14.3 | 1.6 |
5.000' | 128.00 | 164.80 | 187.50 | 36.00 | 16.0 | 1.6 |
5.500' | 140.70 | 177.50 | 200.50 | 36.00 | 16.0 | 1.6 |
