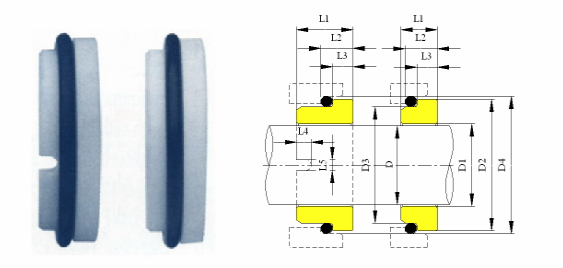

'O' Ring mounted DIN short seat and DIN long seat with drive slot. | ||||||||
These seats offer different axial dimensions to the T24DINL/DINS seats | ||||||||
and can be utilised with most seals particularly the T140 and T190 designs. | ||||||||
UMS STANDARD SIZES Equivalent to Bugmann G6 and G9 | ||||||||
Metric Shaft Size D | Size Code | D1 | D2 | D3 | L1 | L2 | L3 | L4 |
10 | 0100 | 21.00 | 20.60 | 16.40 | 6.60 | 5.50 | 10.00 | 3.00 |
12 | 0120 | 23.00 | 22.60 | 18.40 | 6.60 | 5.50 | 10.00 | 3.00 |
14 | 0140 | 25.00 | 24.60 | 20.40 | 6.60 | 5.50 | 10.00 | 3.00 |
15 | 0150 | 27.00 | 26.60 | 22.40 | 6.60 | 5.50 | 10.00 | 3.00 |
16 | 0160 | 27.00 | 26.60 | 22.40 | 6.60 | 5.50 | 10.00 | 3.00 |
18 | 0180 | 33.00 | 32.60 | 26.60 | 7.50 | 7.00 | 11.50 | 3.00 |
20 | 0200 | 35.00 | 34.60 | 28.60 | 7.50 | 7.00 | 11.50 | 3.00 |
22 | 0220 | 37.00 | 36.60 | 30.60 | 7.50 | 7.00 | 11.50 | 3.00 |
24 | 0240 | 39.00 | 38.60 | 32.60 | 7.50 | 7.00 | 11.50 | 3.00 |
25 | 0250 | 40.00 | 39.60 | 33.60 | 7.50 | 7.00 | 11.50 | 3.00 |
28 | 0280 | 43.00 | 42.60 | 36.60 | 7.50 | 7.00 | 11.50 | 3.00 |
30 | 0300 | 45.00 | 44.60 | 33.60 | 7.50 | 7.00 | 11.50 | 3.00 |
32 | 0320 | 48.00 | 47.60 | 41.60 | 7.50 | 7.00 | 11.50 | 3.00 |
33 | 0330 | 48.00 | 47.60 | 41.60 | 7.50 | 7.00 | 11.50 | 3.00 |
35 | 0350 | 48.00 | 47.60 | 43.80 | 7.50 | 7.00 | 11.50 | 3.00 |
38 | 0380 | 56.00 | 55.60 | 48.80 | 9.00 | 8.00 | 14.00 | 4.00 |
40 | 0400 | 58.00 | 57.40 | 50.30 | 9.00 | 8.00 | 14.00 | 4.00 |
43 | 0430 | 61.00 | 60.60 | 53.80 | 9.00 | 8.00 | 14.00 | 4.00 |
45 | 0450 | 63.00 | 62.60 | 55.80 | 9.00 | 8.00 | 14.00 | 4.00 |
48 | 0480 | 66.00 | 65.60 | 58.80 | 9.00 | 8.00 | 14.00 | 4.00 |
50 | 0500 | 70.00 | 69.60 | 61.25 | 9.50 | 8.50 | 15.00 | 4.00 |
53 | 0530 | 73.00 | 72.60 | 64.25 | 11.00 | 8.50 | 15.00 | 4.00 |
55 | 0550 | 75.00 | 74.40 | 66.25 | 11.00 | 8.50 | 15.00 | 4.00 |
58 | 0580 | 78.00 | 77.50 | 69.25 | 11.00 | 8.50 | 15.00 | 4.00 |
60 | 0600 | 80.00 | 79.50 | 71.25 | 11.00 | 8.50 | 15.00 | 4.00 |
65 | 0650 | 85.00 | 84.50 | 76.25 | 11.00 | 8.50 | 15.00 | 4.00 |
68 | 0680 | 90.00 | 89.50 | 80.50 | 11.30 | 9.50 | 18.00 | 4.00 |
70 | 0700 | 92.00 | 91.40 | 88.60 | 11.30 | 9.50 | 18.00 | 4.00 |
75 | 0750 | 97.00 | 96.40 | 87.60 | 11.30 | 9.50 | 18.00 | 4.00 |
80 | 0800 | 105.00 | 104.20 | 94.70 | 12.00 | 10.00 | 18.20 | 4.00 |
85 | 0850 | 110.00 | 109.20 | 99.70 | 14.00 | 10.00 | 18.20 | 4.00 |
90 | 0900 | 115.00 | 114.20 | 104.70 | 1400 | 10.00 | 18.20 | 4.00 |
95 | 0950 | 120.00 | 119.20 | 109.70 | 14.00 | 10.00 | 17.20 | 4.00 |
100 | 1000 | 125.00 | 124.20 | 114.70 | 14.00 | 10.00 | 17.20 | 4.00 |
