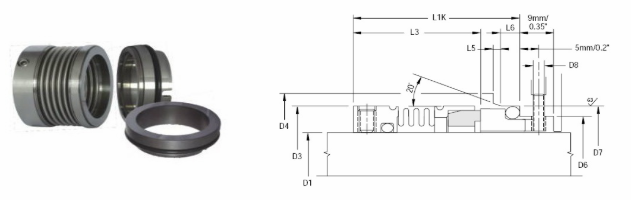

UMS METRIC SHAFT SIZE | ||||||||||
Seal Size | D1 | D3 | D4 | D6 | D7 | D8 | L1K | L3 | L5 | L6 |
25 | 25.0 | 39.6 | 41.0 | 34.0 | 40.0 | 3.0 | 40.0 | 30.0 | 2.0 | 5.0 |
28 | 28.0 | 42.5 | 44.0 | 37.0 | 43.0 | 3.0 | 42.5 | 32.5 | 2.0 | 5.0 |
30 | 30.0 | 44.5 | 46.0 | 39.0 | 45.0 | 3.0 | 42.5 | 32.5 | 2.0 | 5.0 |
32 | 32.0 | 46.5 | 48.0 | 42.0 | 48.0 | 3.0 | 42.5 | 32.5 | 2.0 | 5.0 |
33 | 33.0 | 47.5 | 49.0 | 42.0 | 48.0 | 3.0 | 42.5 | 32.5 | 2.0 | 5.0 |
35 | 35.0 | 49.4 | 51.0 | 44.0 | 50.0 | 3.0 | 42.5 | 32.5 | 2.0 | 5.0 |
38 | 38.0 | 54.0 | 58.0 | 49.0 | 56.0 | 4.0 | 45.0 | 34.0 | 2.0 | 5.0 |
40 | 40.0 | 56.5 | 60.0 | 51.0 | 58.0 | 4.0 | 45.0 | 34.0 | 2.0 | 6.0 |
43 | 43.0 | 56.5 | 63.0 | 54.0 | 61.0 | 4.0 | 45.0 | 34.0 | 2.0 | 6.0 |
45 | 45.0 | 63.3 | 65.0 | 56.0 | 63.0 | 4.0 | 45.0 | 34.0 | 2.0 | 6.0 |
48 | 48.0 | 65.2 | 68.0 | 59.0 | 66.0 | 4.0 | 45.0 | 34.0 | 2.0 | 6.0 |
50 | 50.0 | 66.3 | 70.0 | 62.0 | 70.0 | 4.0 | 47.5 | 34.5 | 2.5 | 6.0 |
53 | 53.0 | 71.5 | 73.0 | 65.0 | 73.0 | 4.0 | 47.5 | 34.5 | 2.5 | 6.0 |
55 | 55.0 | 71.5 | 75.0 | 67.0 | 75.0 | 4.0 | 47.5 | 34.5 | 2.5 | 6.0 |
58 | 58.0 | 74.7 | 83.0 | 70.0 | 78.0 | 4.0 | 52.5 | 39.5 | 2.5 | 6.0 |
60 | 60.0 | 79.3 | 85.0 | 72.0 | 80.0 | 4.0 | 52.5 | 39.5 | 2.5 | 6.0 |
63 | 63.0 | 82.3 | 88.0 | 75.0 | 83.0 | 4.0 | 52.5 | 39.5 | 2.5 | 6.0 |
65 | 65.0 | 82.3 | 90.0 | 77.0 | 85.0 | 4.0 | 52.5 | 39.5 | 2.5 | 6.0 |
68 | 68.0 | 87.5 | 93.0 | 81.0 | 90.0 | 4.0 | 52.5 | 37.5 | 2.5 | 7.0 |
70 | 70.0 | 89.5 | 95.0 | 83.0 | 92.0 | 4.0 | 60.0 | 45.0 | 2.5 | 7.0 |
75 | 75.0 | 92.5 | 104.0 | 88.0 | 97.0 | 4.0 | 60.0 | 45.0 | 2.5 | 7.0 |
80 | 80.0 | 98.6 | 109.0 | 95.0 | 105.0 | 4.0 | 60.0 | 44.5 | 3.0 | 7.0 |
85 | 85.0 | 107.1 | 114.0 | 100.0 | 110.0 | 4.0 | 60.0 | 44.5 | 3.0 | 7.0 |
90 | 90.0 | 113.5 | 119.0 | 105.0 | 115.0 | 4.0 | 65.0 | 49.5 | 3.0 | 7.0 |
95 | 95.0 | 116.7 | 124.0 | 110.0 | 120.0 | 4.0 | 65.0 | 49.5 | 3.0 | 7.0 |
100 | 100.0 | 123.0 | 129.0 | 115.0 | 125.0 | 4.0 | 65.0 | 49.5 | 3.0 | 7.0 |

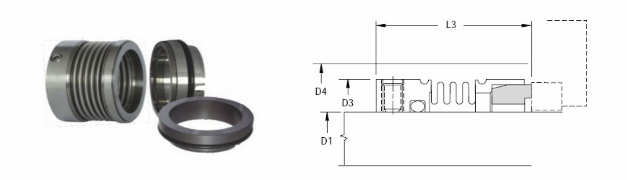

UMS STANDARD INCH SHAFT SIZE | ||||
Seal Size | D1 | D3 | D4 | L3 |
254 | 1.000 | 1.559 | 1.625 | 1.181 |
285 | 1.125 | 1.693 | 1.750 | 1.280 |
317 | 1.250 | 1.815 | 1.875 | 1.280 |
349 | 1.375 | 1.945 | 2.000 | 1.280 |
381 | 1.500 | 2.126 | 2.250 | 1.339 |
412 | 1.625 | 2.224 | 2.375 | 1.339 |
444 | 1.750 | 2.413 | 2.500 | 1.339 |
476 | 1.875 | 2.492 | 2.625 | 1.339 |
508 | 2.000 | 2.685 | 2.750 | 1.358 |
539 | 2.125 | 2.815 | 2.875 | 1.358 |
571 | 2.250 | 2.886 | 3.000 | 1.555 |
603 | 2.375 | 3.122 | 3.250 | 1.555 |
635 | 2.500 | 3.240 | 3.375 | 1.555 |
666 | 2.625 | 3.445 | 3.625 | 1.476 |
698 | 2.750 | 3.523 | 3.750 | 1.772 |
730 | 2.875 | 3.642 | 3.875 | 1.772 |
762 | 3.000 | 3.760 | 4.000 | 1.752 |
793 | 3.125 | 3.882 | 4.125 | 1.752 |
825 | 3.250 | 4.008 | 4.375 | 1.752 |
857 | 3.375 | 4.216 | 4.500 | 1.949 |
889 | 3.500 | 4.339 | 4.625 | 1.949 |
920 | 3.625 | 4.469 | 4.750 | 1.949 |
952 | 3.750 | 4.594 | 4.875 | 1.949 |
984 | 3.875 | 4.717 | 5.000 | 1.949 |
1016 | 4.000 | 4.843 | 5.125 | 1.949 |
