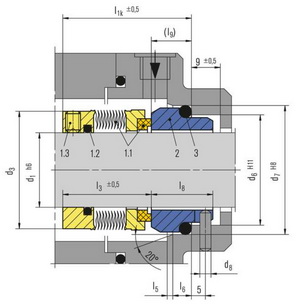

d1 | d3 | d6 | d7 | d8 | ds | l1K | l3 | l5 | l6 | l8 | l9 | l18 | l19 | b | s |
16 | 30.0 | 23.0 | 27.0 | 3.0 | 38.0 | 42.5 | 32.5 | 1.5 | 4.0 | 17.5 | 10.0 | – | – | 1.6 | 9.0 |
18 | 32.0 | 27.0 | 33.0 | 3.0 | 39.0 | 42.0 | 30.5 | 2.0 | 5.0 | 14.0 | 11.5 | 15.0 | 7.0 | 1.6 | 10.0 |
20 | 33.5 | 29.0 | 35.0 | 3.0 | 41.0 | 42.0 | 30.5 | 2.0 | 5.0 | 14.0 | 11.5 | 15.0 | 7.0 | 1.6 | 10.0 |
22 | 36.5 | 31.0 | 37.0 | 3.0 | 44.0 | 37.5 | 30.5 | 2.0 | 5.0 | 14.0 | 11.5 | 15.0 | 7.0 | 1.6 | 10.0 |
24 | 39.0 | 33.0 | 39.0 | 3.0 | 47.0 | 40.0 | 28.5 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 8.2 |
25 | 39.6 | 34.0 | 40.0 | 3.0 | 48.0 | 40.0 | 28.5 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 8.5 |
28 | 42.8 | 37.0 | 43.0 | 3.0 | 51.0 | 42.5 | 31.0 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 9.0 |
30 | 45.0 | 39.0 | 45.0 | 3.0 | 53.0 | 42.5 | 31.0 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 8.5 |
32 | 46.0 | 42.0 | 48.0 | 3.0 | 55.0 | 42.5 | 31.0 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 9.2 |
33 | 48.0 | 42.0 | 48.0 | 3.0 | 56.0 | 42.5 | 31.0 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 9.2 |
35 | 49.2 | 44.0 | 50.0 | 3.0 | 58.0 | 42.5 | 31.0 | 2.0 | 5.0 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 9.5 |
38 | 52.3 | 49.0 | 56.0 | 4.0 | 61.0 | 45.0 | 31.0 | 2.0 | 6.0 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
40 | 55.5 | 51.0 | 58.0 | 4.0 | 64.0 | 45.0 | 31.0 | 2.0 | 6.0 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
43 | 57.5 | 54.0 | 61.0 | 4.0 | 67.0 | 45.0 | 31.0 | 2.0 | 6.0 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
45 | 58.7 | 56.0 | 63.0 | 4.0 | 69.0 | 45.0 | 31.0 | 2.0 | 6.0 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.5 |
48 | 61.9 | 59.0 | 66.0 | 4.0 | 72.0 | 45.0 | 31.0 | 2.0 | 6.0 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
50 | 65.0 | 62.0 | 70.0 | 4.0 | 74.0 | 47.5 | 32.5 | 2.5 | 6.0 | 23.0 | 15.0 | 17.0 | 9.5 | 1.6 | 10.5 |
53 | 68.2 | 65.0 | 73.0 | 4.0 | 77.0 | 47.5 | 32.5 | 2.5 | 6.0 | 23.0 | 15.0 | 17.0 | 9.5 | 1.6 | 10.5 |
55 | 70.0 | 67.0 | 75.0 | 4.0 | 80.0 | 47.5 | 32.5 | 2.5 | 6.0 | 23.0 | 15.0 | 17.0 | 9.5 | 1.6 | 10.0 |
58 | 71.7 | 70.0 | 78.0 | 4.0 | 83.0 | 52.5 | 37.5 | 2.5 | 6.0 | 23.0 | 15.0 | 18.0 | 10.5 | 3.0 | 14.0 |
60 | 74.6 | 72.0 | 80.0 | 4.0 | 85.0 | 52.5 | 37.5 | 2.5 | 6.0 | 23.0 | 15.0 | 18.0 | 10.5 | 3.0 | 14.0 |
63 | 79.0 | 75.0 | 83.0 | 4.0 | 88.0 | 52.5 | 37.5 | 2.5 | 6.0 | 23.0 | 15.0 | 18.0 | 10.5 | 3.0 | 14.0 |
65 | 84.1 | 77.0 | 85.0 | 4.0 | 95.0 | 52.5 | 37.5 | 2.5 | 6.0 | 23.0 | 15.0 | 18.0 | 10.5 | 3.0 | 14.0 |
68 | 87.3 | 81.0 | 90.0 | 4.0 | 96.0 | 52.5 | 34.5 | 2.5 | 7.0 | 26.0 | 18.0 | 18.5 | 11.0 | 1.6 | 10.0 |
70 | 87.3 | 83.0 | 92.0 | 4.0 | 96.0 | 60.0 | 42.0 | 2.5 | 7.0 | 26.0 | 18.0 | 19.0 | 11.5 | 3.0 | 17.0 |
75 | 95.0 | 88.0 | 97.0 | 4.0 | 104.0 | 60.0 | 42.0 | 2.5 | 7.0 | 26.0 | 18.0 | 19.0 | 11.5 | 3.0 | 16.0 |
80 | 98.4 | 95.0 | 105.0 | 4.0 | 109.0 | 60.0 | 41.8 | 3.0 | 7.0 | 26.2 | 18.2 | 19.0 | 11.5 | 3.0 | 16.0 |
85 | 104.7 | 100.0 | 110.0 | 4.0 | 114.0 | 60.0 | 41.8 | 3.0 | 7.0 | 26.2 | 18.2 | 19.0 | 11.5 | 3.0 | 16.0 |
90 | 111.0 | 105.0 | 115.0 | 4.0 | 119.0 | 65.0 | 46.8 | 3.0 | 7.0 | 26.2 | 18.2 | 20.5 | 13.0 | 3.0 | 21.0 |
95 | 114.0 | 110.0 | 120.0 | 4.0 | 124.0 | 65.0 | 47.8 | 3.0 | 7.0 | 25.2 | 17.2 | 20.5 | 13.0 | 3.0 | 21.0 |
100 | 117.4 | 115.0 | 125.0 | 4.0 | 129.0 | 65.0 | 47.8 | 3.0 | 7.0 | 25.2 | 17.2 | 20.5 | 13.0 | 3.0 | 20.0 |
