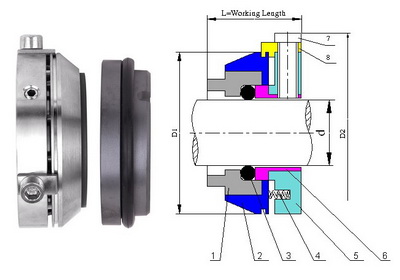

2

RETAINER

316SS

3

O-RING

VITON/EP/NIT

4

SPRING

316SS

5

CLAMP RING

316SS

6

BACKUP RING

316SS

7

SCREW

316SS

8

SETTING RING

BRASS/316SS

Seal  Size d

L

D1

D2

Seal  Size d

L

D1

D2

0.625

1.099

1.622

2.192

20

27.91

45.3

59.8

0.750

1.099

1.747

2.317

22

27.91

47.3

61.8

0.875

1.099

1.872

2.442

24

27.91

49.3

63.8

1.000

1.099

1.997

2.567

25

27.91

50.3

64.8

1.125

1.099

2.122

2.692

28

27.91

53.3

67.8

1.250

1.099

2.247

2.817

30

27.91

55.3

69.8

1.375

1.099

2.372

2.942

32

27.91

57.3

71.8

1.500

1.099

2.497

3.067

33

27.91

58.3

72.8

1.625

1.099

2.622

3.192

35

27.91

60.3

74.8

1.750

1.099

2.747

3.317

38

27.91

63.3

77.8

1.875

1.099

2.872

3.442

40

27.91

65.3

79.8

2.000

1.099

2.997

3.567

42

27.91

67.3

81.8

2.125

1.099

3.122

3.692

43

27.91

68.3

82.8

2.250

1.099

3.247

3.817

45

27.91

70.3

84.8

2.375

1.099

3.372

3.942

48

27.91

73.3

87.8

2.500

1.099

3.497

4.067

50

27.91

75.3

89.8

2.625

1.192

3.866

4.436

53

27.91

78.3

92.8

2.750

1.192

3.991

4.561

55

27.91

80.3

94.8

2.875

1.192

4.116

4.686

60

27.91

85.3

99.8

3.000

1.192

4.241

4.811

65

30.28

96.5

111.0

3.125

1.192

4.366

4.936

70

30.28

101.5

116.0

3.250

1.192

4.491

5.061

75

30.28

106.5

121.0

3.375

1.192

4.616

5.186

80

30.28

111.5

126.0

3.500

1.192

4.741

5.311

85

30.28

116.5

131.0

3.625

1.192

4.866

5.436

90

30.28

121.5

136.0

3.750

1.192

4.991

5.561

95

30.28

126.5

141.0

3.875

1.192

5.116

5.686

100

30.28

131.5

146.0

4.000

1.192

5.241

5.811
